| 電機性能參數 | |||||||||
|
型號 Type |
功率 Power (W) |
電壓 Voltage (V) |
頻率 Frequency (Hz) |
電流 Current (A) |
起動轉矩 Starting Torue mN.m(g.cm) |
額定轉矩 Rated Speed mN.m(g.cm) |
額定轉速 Rated Speed r/min |
電容 Capacitor μF/VAC |
工作狀態 Operating Mode |
| YYTCJ-90-4/90--5 | 90 | 220 | 50 | 1.0 | 500(5000) | 650(6500) | 1350 | 6/450 | 連續 Cont |
| YYTCJ-90-4/90--6 | 1.2 | 600(6000) | 650(6500) | 1350 | 6/450 | 30min | |||
| YYTCJ-90-4/90--7 | 90 | 110 | 60 | 2.0 | 500(5000) | 532(5320) | 1650 | 25/450 | 連續 Cont |
| YYTCJ-90-4/90--8 | 2.4 | 500(5000) | 532(5320) | 1650 | 25/450 | 30min | |||
|
允許負載 50Hz |
||||||||||||||||||||||
|
型號 YYTCJ-90-4/90 |
轉速 r/min 速比 |
500 | 416 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | |
| 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | |||
|
轉矩 |
1.64 | 1.97 | 2.73 | 3.28 | 4.10 | 4.9 | 6.8 | 7.39 | 8.87 | 12.3 | 13.4 | 16 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | ||
| 16.4 | 19.7 | 27.3 | 32.8 | 41.0 | 49 | 68 | 73.9 | 88.7 | 123 | 134 | 160 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | |||
|
允許負載 60Hz |
||||||||||||||||||||||
|
型號 YYTCJ-90-4/90 |
轉速 r/min 速比 |
600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | |
| 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | |||
|
轉矩 |
1.4 | 1.7 | 2.3 | 2.8 | 3.5 | 4.2 | 5.2 | 6.2 | 7.5 | 10.4 | 11.3 | 13.5 | 18.8 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | ||
| 14 | 17 | 23 | 28 | 35 | 42 | 52 | 62 | 75 | 104 | 113 | 135 | 188 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | |||

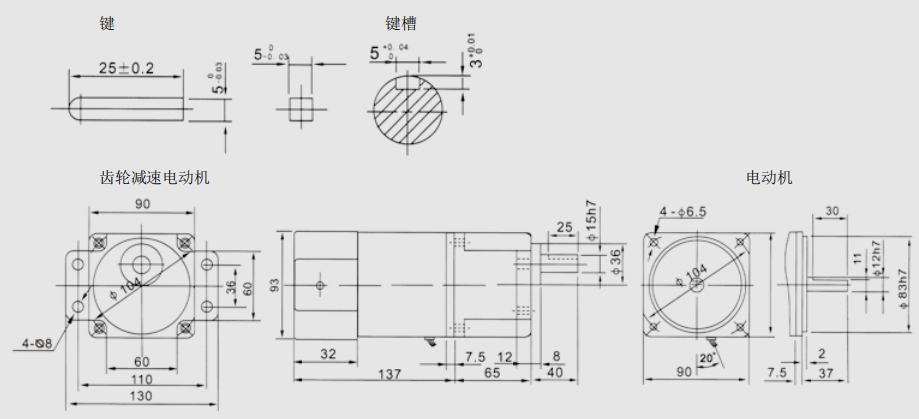

外形尺寸
